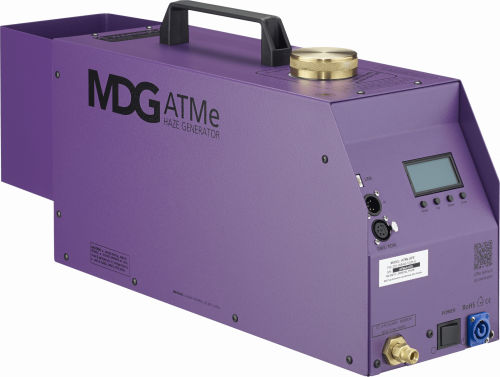

The ATMe single high output haze generator is the evolution of the world-famous ATMOSPHEREAPS, the industry’s standard for almost two decades.

Features:

Lowest Fluid Consumption on the Market

  • At 1.38 bar / 20 psi ATMe uses only 55 ml / 1.64 oz of fluid per hour to give a total running time of 46 hrs from its 2.5 L (0.66 US gallon) reservoir.

Longest Hanging Time

  • Our MDG Neutral fluid is specially created for the longest hanging time.

Variable Haze Output

  • 0-100% haze output control from your DMX / RDM device. 100% duty cycle.

Automatic Purging System

  • This system purges the heating module after the first heating cycle and after every emission of haze preventing residual build up and clogging.

Numerous Control Options

  • 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

Extremely Quiet Operation

  • Noise emission (at 1m/3.3’): 45.4 dB in standard mode. Quieter in theater mode.

Specifications:

  • CO2 consumption: 0.18 kg (0.4 lb) per hr at 1.38 bar/20 psi 0.36 kg (0.8 lb) per hr at 2.76 bar/40 psi
  • Reservoir capacity: 2.5 L (0.66 US gallon)
  • Particle size: 0.5 – 0.7 micron
  • Warm-up time: 8 minutes (maximum)
  • Fluid type: MDG Neutral
  • Operating voltage: 100 – 250 VAC, 50/60 Hz single phase
  • Power consumption: 75 Watt
  • Length: 27” (68.5 cm)
  • Width: 7” (18 cm)
  • Height: 12” (30 cm)
  • Weight: 37 lb (16.8 kg)
  • Shipping weight: 67 lb (30.5 kg) with flight case
  • Approval: CE certified, CSA and UL approved
