GrandMA 1 Full
GrandMA 2 Full
Equipped with the most up-to-date technology and even some special features (e.g. keyboard drawer and multi-touch command screen), the grandMA2 is suitable for all lighting segments. It supplies an intuitive and fast control of all connected fixtures and channels. Furthermore the grandMA2 fader wing provides up to 60 extra motorized executor faders for an almost unlimited number of pages.
Moreover grandMA series 1-showfiles can be converted to be used with the grandMA2. And for yet easier operation, all command keys can be found in the same place on every console of the grandMA2 series. The grandMA2 offers extremely flexible and comfortable ways of programming, including nearly infinite numbers of presets, cues, pages, sequences and effects.
GrandMA2 Light
The grandMA2 light is the perfect tool to control all kinds of lighting genres like conventionals, moving lights, LEDs, video and media. It supplies an intuitive and fast control of all connected fixtures and channels. The grandMA2 light can handle an almost infinite number of presets, cues, pages, sequences and effects. It is ideally suited as a standalone console or as a backup device for the grandMA2 full-size. Moreover grandMA series 1-showfiles can be converted to be used with the grandMA2.
High End Systems Stage Hog
The Stage Hog is built for any production environment that demands a compact yet highly flexible solution. Featuring a ‘headless’ design, this powerful console is loaded with road-tested features including RGB-backlit keys, motorized faders, five precision encoders with assignable wheel buttons, and customizable user and function keys — all complemented by dual dashboard multitouch displays for a smooth and intuitive workflow.
A built-in backlit alpha keyboard housed in a locking drawer adds convenience and ease during programming.
Designed with versatility in mind, the Stage Hog includes two standard baby pin mounting points for third-party accessories such as monitors, tablets, or cameras.
Connectivity is robust with Neutrik EtherCON and OpticalCON, DMX, MIDI, SMPTE, and USB-A and USB-C ports, making the Stage Hog a versatile and powerful centerpiece for any modern lighting setup.
ETC Stage Hog Features
- Neutrik powerCON® TRUE1 power input and thru
- Two Neutrik EtherCON® Ethernet connections
- Two Neutrik Multimode opticalCON Duo connectors
- USB 3.0 type A (4) and type C (2) connectors
- Wi-Fi and Bluetooth antennas
- Four DMX outputs (5-pin XLR)
- SMPTE input (3-pin XLR)
- MIDI In/Thru/Out
- Desk Light (3-pin XLR, standard pinout)
ETC Stage Hog Specifications
- SYSTEM CAPACITY
- 64 Universes
- DISPLAY FUNCTIONS
- Dual 12.5” dashboard displays; six full color function key displays
- Supports two external display port monitors at 1280×1024 minimum resolution, with optional touch or multi-touch control
- User configurable displays with recordable views
- Dedicated views to access most-used items quickly
- Palette, list, views, scenes, batches, effects directories
- Programmer window
- Plot views
- Output window
- Fixture Schedule and Patch windows, sortable by fixture or by universe
- Three color schemes for daylight use, regular use or dark environment use
- PROGRAMMING
- Compact RGB backlit command keypad for quick programming
- Command-line interface
- Programmer Dashboard display for encoder mapping, command line/status display and additional programming tools
- Programmer window displays selected and adjusted fixtures
- Lists constructed with +, -, and Thru or selection softkeys, Next, Back and All commands
- Intensity set with command keypad, full key, intensity palettes
- Ordered groups
- Comprehensive fanning using segments and buddying
- 12 Function keys for user kinds and commands
- Dedicated kind keys and five high-resolution parameter encoders, with two keys per encoder
- Eight user “U-Keys” for user defined functions
- Media picker window
- Hog Color System
- Programmer window
- Groups for simplified fixture selection
- Palettes: intensity, position, colour, beam, effects
- Effects Engine
- Pixelmapping Effects
- Park
- Undo command
- Delete, Move and Copy commands
- Highlight, lowlight and rem dim commands
- Cue level and parameter level timing
- Record, Update and Merge commands
- Knockout and Clear commands
- Set command for text labels and data entry
- PLAYBACK CONTROLS
- Playback Dashboard display for playback bar display, master ranges, and additional playback tools
- 10 pageable, motorized RGB-backlit master playbacks with customizable faders, flash, go, halt, back and choose keys
- Main playback stack including GM, Restart, Assert, Release, Pig, Skip Forward, Skip Backward, Master Pause, and Master Play keys
- Master Ranges for quick reassignment of playback masters content
- Unlimited fader Pages
- Comment macros and keystroke macros
- Paging keys
- Virtual masters
- Scenes
- Batch controllers
- Group masters
- Triggering via Command keys
- Playback expansion via Tour Wing
- OSC input/output, MIDI messages, MIDI Show Conrol, MIDI/LTC timecode
- INTERFACES AND ACCESSORIES
- Gig Hog programming wing
- HPU hybrid processing unit
- Response network gateways and interfaces
- ETCnomad
- ELECTRICAL AND ENVIRONMENTAL
- ETL, CETL and CE compliance
- Mains power: 100–250 VAC, 50/60 Hz, max 80 W
- Mains connector: Neutrik PowerCON® TRUE1
- Breaker: 7.5 A
- Acoustical rating: TBD dbA
High End Systems Tour Hog
The Tour Hog is purpose-built for any production environment that demands a compact, all-in-one control solution. Engineered for performance, it features a stand-alone design packed with proven, road-ready features including RGB-backlit keys, motorized faders, and five premium encoders with assignable wheel buttons. For complete control customization, it also includes user and function keys, dual dashboard multitouch displays, and a 24-inch articulating high-resolution multitouch screen for an immersive programming experience.
A built-in backlit alpha keyboard tucked into a locking drawer adds convenience and speed for live operation.
The Tour Hog offers robust connectivity with Neutrik EtherCON and OpticalCON, along with DMX, MIDI, SMPTE, and both USB-A and USB-C ports, ensuring it integrates seamlessly into any modern lighting rig.
ETC Tour Hog Features
- Neutrik powerCON® TRUE1 power input and thru
- Two Neutrik EtherCON® Ethernet connections
- Two Neutrik Multimode opticalCON Duo connectors
- USB 3.0 type A (4) and type C (2) connectors
- Wi-Fi and Bluetooth antennas
- Four DMX outputs (5-pin XLR)
- SMPTE input (3-pin XLR)
- MIDI In/Thru/Out
- Desk Light (3-pin XLR, standard pinout)
ETC Tour Hog Specifications
- SYSTEM CAPACITY
- 64 Universes
- DISPLAY FUNCTIONS
- Built-in articulating 23.8” high resolution multitouch displayand dual 12.5” dashboard displays; six full color function key displays
- Supports two external display port monitors at 1280×1024 minimum resolution, with optional touch or multi-touch control
- User configurable displays with recordable views
- Dedicated views to access most-used items quickly
- Palette, list, views, scenes, batches, effects directories
- Programmer window
- Plot views
- Output window
- Fixture Schedule and Patch windows, sortable by fixture or by universe
- Three color schemes for daylight use, regular use or dark environment use
- PROGRAMMING
- Compact RGB backlit command keypad for quick programming
- Command-line interface
- Programmer Dashboard display for encoder mapping, command line/status display and additional programming tools
- Programmer window displays selected and adjusted fixtures
- Lists constructed with +, -, and Thru or selection softkeys, Next, Back and All commands
- Intensity set with command keypad, full key, intensity palettes
- Ordered groups
- Comprehensive fanning using segments and buddying
- 12 Function keys for user kinds and commands
- Dedicated kind keys and five high-resolution parameter encoders, with two keys per encoder
- Eight user “U-Keys” for user defined functions
- Media picker window
- Hog Color System
- Programmer window
- Groups for simplified fixture selection
- Palettes: intensity, position, colour, beam, effects
- Effects Engine
- Pixelmapping Effects
- Park
- Undo command
- Delete, Move and Copy commands
- Highlight, lowlight and rem dim commands
- Cue level and parameter level timing
- Record, Update and Merge commands
- Knockout and Clear commands
- Set command for text labels and data entry
- PLAYBACK CONTROLS
- Playback Dashboard display for playback bar display, master ranges, and additional playback tools
- 10 pageable, motorized RGB-backlitmaster playbacks with customizable faders, flash, go, halt, back and choose keys
- Main playback stack including GM, Restart, Assert, Release, Pig, Skip Forward, Skip Backward, Master Pause, and Master Play keys
- Master Ranges for quick reassignment of playback masters content
- Unlimited fader Pages
- Comment macros and keystroke macros
- Paging keys
- Virtual masters
- Scenes
- Batch controllers
- Group masters
- Triggering via Command keys
- Playback expansion via Tour Wing
- OSC input/output, MIDI messages, MIDI Show Conrol, MIDI/LTC timecode
- INTERFACES AND ACCESSORIES
- Gig Hog programming wing
- HPU hybrid processing unit
- Response network gateways and interfaces
- ETCnomad
- ELECTRICAL AND ENVIRONMENTAL
- ETL, CETL and CE compliance
- Mains power: 100–250 VAC, 50/60 Hz, max 80 W
- Mains connector: Neutrik PowerCON® TRUE1
- Breaker: 7.5 A
- Acoustical rating: TBD dbA
Hog 4
The Hog 4 is the flagship in our newest range of consoles. Replacing the much loved Wholehog III, it embraces the latest technology, while retaining the Hog’s familiar control surface. Users will be able to walk up to the Hog 4 and start programming without having to learn a whole new interface. The new encoders, jog shuttle wheel, lcd keys, motorized faders and integrated keyboard all serve to enhance this experience, making the Hog 4 completely customizable. You can now have virtually all the most important attributes to hand at any time.
Retaining the sleek look of generations past, the Hog 4 offers the user an advanced programming experience in an established environment. The Hog 4 console, at the top of the Hog line, is designed to handle the largest shows.
The console provides three monitor outputs, MIDI input and output ports, 8 USB ports, 2 Fast Ethernet ports on a rugged Neutrik Ethercon connector allowing you total flexibility. You’re prepared for everything from the smallest industrial job requiring a single console to the largest stadium show, theme park installation or Broadway spectacular requiring a multi console setup with full network backups!
Preserve show data on a solid state hard disk drive as well as with USB drives and CD/DVD-ROM’s, or alternatively connect directly to a network drive to store your show files remotely.
Full Boar 4
A console capable of delivering everything from a local theatre show to a stadium gig! All the power of the Hog 4 in a more compact package, with sleek lines, raked screens and familiar layout. Like it’s predecessor it allows for total expansion enabling you to create, manage, edit and playback all types of shows. The Full Boar 4 comes packed with the latest hardware features – 10 point multi touch, motorized faders, solid state HDD to name a few.

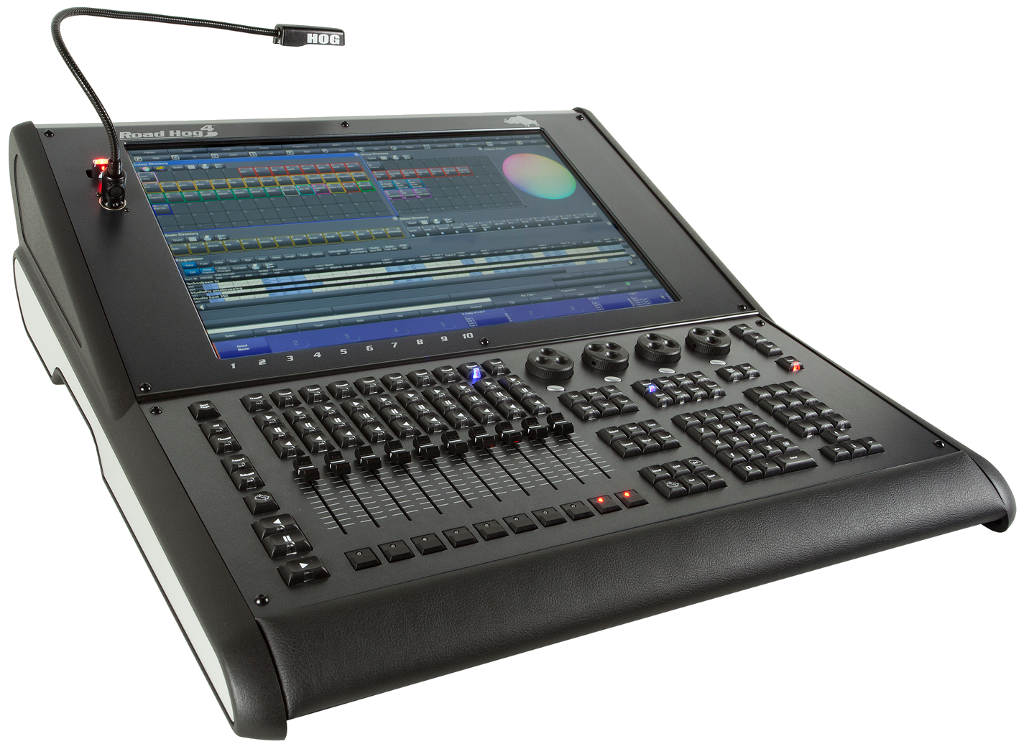

Road Hog 4
The most cost effective Hog ever! With a market leading 22” multi touch display, all in a compact package, now with networking and Art-Net outputs.
The Road Hog 4 is unparalleled in the industry. Allowing full expansion in a compact package not only does this Hog pack an enormous punch but it is also the most affordable Hog console in a generation!
The programming interface remains familiar with the minutest of changes to allow for the compact chassis allowing the user to transition across the whole range without sacrificing work flow.
HedgeHog 4
This array of HedgeHog 4’s are the littlest of the range and still pack quite a punch, running the same software as all the other Hogs. They come with ArtNet and CITP capabilities and are designed for small to mid level shows. They are compact, lightweight and easy to take on a plane! Running on Linux, they are fast, stable and ready to Hog. Whether being used in a school theatre, nightclub, corporate event, medium scale rental job or church, they are the perfect consoles. Retaining the same programming layout as their larger brother, the Road Hog 4, as well as being able to load show files from any of the range (and vice versa) means that this compact console range is extremely flexible and easy to use. In addition all HedgeHog 4’s will now include a license free Light Converse state of the art lighting visualizer!
