LED

ACME Pixel Line IP

The ACME PIXEL LINE IP strip light is like no other. Its small size and weight, IP66 rating for applications indoors as well as outdoors, and uniform colors and effects make this fixture extremely versatile for any application.

The PIXEL LINE IP is powered with 672 RGBW LEDs and 112 cool white LEDs with the RGBW LEDs divided into 32 sections and the white LEDs into 16 sections. The unit is equipped with ACME’s patented Smart Glass Technology for unprecedented, frosted looks. The white LEDs deliver bright strobe effects and are integrated in such a way to complement the color LED sections.

The fixture offers ten DMX control modes from simple operation to intense, eye-catching individual pixel control effects. The PIXEL LINE IP also offers preprogrammed effects macros and colors for time-saving programming. Incorporating ACME’s Smart Glass Technology allows the unit to switch from its normal strip light mode to soft light mode without adding an external frost filter, making the unit more flexible during your production.

The PIXEL LINE IP can be mounted in any orientation from the floor to hanging in truss. The unit is equipped with two connection points for the supplied omega brackets that accept most hooks or clamps. The fixture also features a tool-less connection system that allows units to be joined side-by-side quickly. Weighing only 8.5 kilograms or 19 pounds and measuring 1 meter (39.4 inches), the PIXEL LINE IP can be used virtually anywhere for any production, indoors or outdoors.

The PIXEL LINE IP is a powerful, all-weather fixture that redefines what a strip light can be.

Features

  • Light Sources:
    • 672pcs 0.5W RGB LED (can be divided into 32 controllable sections)
    • 112pcs 3W CW LED (can be divided into 16 controllable sections)
  • Beam Angle:
    • RGB Beam Angle: 101°
    • CW Beam Angle: 108°
  • Field Angle:
    • RGB Field Angle: 149°
    • CW Field Angle: 152°
  • Outstanding color effects
  • High output strobe effects
  • Multiple units can be connected tool free
  • Smart Glass technology for DMX controllable frost effects
  • Four dimming curves
ACME Pixel Line IP2023-12-27T13:35:08-07:00

Apurture LS300X

The Light Storm LS300X LED Light Kit from Aputure is the first Aputure light to go beyond traditional bi-color lighting by utilizing the expanded vari-white CCT range of 2700-6500K, providing warmer tungsten tones and cooler than daylight whites. The brilliant light can be dimmed from a potent main light to a subtle, nuanced fill light, flicker free across the dimming range.The Controller Box attached to the LS300X head with a 9.8-foot head extension cable, so adjusting settings is effortless regardless of where the light is set. The self-regulating , multi-voltage controller also operates using single or dual V-mount batteries, suitable for lighting in remote locations.

Robust Bi-Color Performance

Combining the latest optical color-blending technology with Aputure’s dual-color LED chipset provides an unprecedented flexibility from a single LED fixture. A specially-designed color-blending optical element in front of the chipset combines the LED output into a single cohesive point light source. The highly-efficient light output renders at CRI 95, TLCI 98, plus higher than industry standard SS1 85, and D55-SSI 74 ratings. This level of efficiency means colors and skin tones will be reproduced with an extremely-high degree of accuracy.

Local Control, DMX, 2.4 GHz Wireless, and Bluetooth Remote Control Options

Intuitive local controls and a bright LCD display on the Controller Box allow precise and repeatable setups locally. In addition, the output may be controlled using the included 2.4 GHz wireless remote, or the light may be integrated into a DMX network via the 5-pin XLR in/out ports. Also, thanks to Aputure’s integrated Sidus Mesh network chipset, all the 300X’s functions may be controlled by the Sidus Link app, free to download for iOS and Android portable devices. The app also allows saving presets, adjusting/triggering lighting effects, luminance, and CCT, as well as installation of firmware updates, all from your smartphone or tablet.

Dual Output Modes

Constant Output Mode allows precision CCT adjustment while maintaining constant luminance, and even shift color temperature seamlessly during a scene. Max Ouptut Mode will maximize CCT and dimming levels within the 4000-5500K range.

Bowens S-Mount Versatility

The integrated Bowens-S mount allows using an almost limitless number of available modifiers to narrow, diffuse, or otherwise sculpt the light to suit any application or creative vision.

Four Available Dimming Modes

LinearExponentialLogarithmicS-Curve

5 Available Common CCT Presets

2700K3200K4200K5500K6500K

Nine Customizable Built-In Lighting Effects

  • Paparazzi
  • Fireworks
  • Lightning
  • Faulty Bulb
  • TV
  • Pulsing
  • Strobe
  • Explosion
  • Fire
Apurture LS300X2023-02-08T12:23:54-07:00

Arri L7-C

Arri_553500D_L7_C_Daylight_LED_Fresnel_812825

Color temperature, tint and hue can be continuously adjusted from 2,800 K to 10,000 K, between full plus or minus green and RGBW colors.

LIGHT ENGINE 2
L7-Cs with the new LE2 are 25% brighter than previous L7-C versions.

STAND-MOUNT
versions include the following base configuration: 28 mm Spigot (Junior Pin), Inline Switch, Integrated 5-Pin DMX In and Thru.

HANGING
versions include the following base configuration: 28 mm Spigot (Junior Pin), 1,5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.

POLE-OPERATED
versions include the following base configuration: Pole Operation for Pan, Tilt and Focus, 28 mm Spigot (Junior Pin), 1,5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.

Arri L7-C2021-10-11T11:22:11-07:00

Arri SkyPanel S30-C

SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S360 is the largest and brightest SkyPanel with four times the output of the S60 and almost six times the aperture size. The S360 is perfect for lighting large areas with tuneable, soft light. S30 and S60 models are available in fully color tuneable and remote phosphor versions.

Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 1 kW tungsten soft light or a 3 kW tungsten space light, the SkyPanel S30 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.

Made in Germany to the high standards for which all ARRI products are known, SkyPanel is built to last – constructed from resilient materials and assembled by hand with great care. Other features include an on-board battery input for mobile applications, LAN port for network connectivity, USB-A port for firmware updates via thumb drive, and many more.

Arri SkyPanel S30-C2023-02-08T13:15:25-07:00

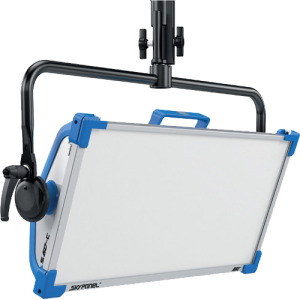

Arri SkyPanel S60-C

arri_l0_0007063_skypanel_s60_c_led_softlight_1432669573000_1139001PNG

Using technology originally designed for the L7-C Fresnel, the SkyPanel S60-C is fully color “tuneable” allowing output of a warm 2,800K to icy blue 10,000K light and also uses the full RGB+W color gamut with hue and saturation control for fine adjustments. Full Minusgreen to Full Plusgreen is also possible, so if you’re lighting for blue or greenscreen, you can simply dial your color chosen in. This wide degree of control is responsible for a very high CRI of 95 and a rating of 90 with the newer TLCI standard. All of these functions as well as 0-100% dimming can be adjusted locally with the SkyPanel’s onboard controller or remotely via DMX or a LAN. Besides inputs and outputs appropriate to these functions, the light also has a USB-A port for downloading firmware upgrades from a thumb drive, PC or Mac.

The SkyPanel S60-C can be used worldwide, thanks to its included 90-250 VAC power supply but it can also use optional 23-36 VDC batteries when mains power is unavailable. Besides the power supply, the light comes with a Junior (1-1/8″) pin and a standard diffuser. This version of the light has a manual yoke and comes with an Edison power cord.

Arri SkyPanel S60-C2021-10-11T11:22:32-07:00

Astra 1×1 Bi-Color Panel

Litepanels continues to expand and enhance their formidable LED line with the Astra 6X Bi-Color LED Panel, which is 6x the brightness of the original Bi-Color 1×1. The technological advancement and enhancement is evident in the high CRI and significantly increased brightness, due to the use of tightly-binned LEDs and fine-tuned TIR (Total Internal Reflection) optics, resulting in a longer throw over a wider field. As in previous versions of the 1×1 form factor, the Astra has variable tungsten to daylight color temperature with negligible color shift, 0-100% dimming.

The Astra’s functions may be adjusted locally using the intuitive built-in controls, or operated remotely with one of the optional DMX512 Modules, available in XLR 5-Pin, RJ-45, or Wireless formats. Each module provides Master/Replica configuration for the control of single lights, or multiple light fixtures in a network or daisy chain. In addition, the Astra Bluetooth module provides the same kind of control of single or multiple lights from a portable device, using the free Litepanels Smartlite app download. The accessory modules slide into place on the rear of the Astra panel simply and quickly, with no wiring or complex installation required.

The Astra 6X Bi-Color comes with both US and EU power cables, plus a universal (100-240 VAC) adapter. It also operates on 13-24 VDC batteries by using V-Mount or Gold Mount battery plates, available separately. The unique curved yoke design features a TVMP connector for hanging or stand mounting the panel almost anywhere, and two additional 1/4″-20 female taps offer alternate mounting points.

Astra 1×1 Bi-Color Panel2021-10-11T11:24:49-07:00

Ayrton Diablo

Ayrton’s latest innovation, Diablo, is a versatile, feature-rich 300 W profile luminaire based on the ultra-compact Mistral format.

The company has taken on the ambitious challenge of making Diablo the smallest, lightest and most efficient luminaire of its category. With a record output of 19,000 lumens and a total weight of 21.8 kg, DIABLO is a powerhouse of technology that will tempt the most demanding lighting designers. To achieve its objective, Ayrton has miniaturised the framing system while maximizing the performance level. Diablo is available in two versions: S and TC.

Diablo-S, specially designed for stage applications, is equipped with a monochromatic LED light source that can generate extremely high output and metallic white light calibrated at 6500 K.

DIABLO-TC is geared for applications that require perfect colour rendition, using a monochromatic light source with a native colour rendering index greater than 90 and high TM30 readings, at a colour temperature of 5700 K.

  • Specifications:
  • Optics:
    • 13-element 8:1 zoom high-resolution optic system
    • Beam aperture: 6.7° to 53°
    • Fast motorised linear zoom
    • Tempered anti-reflective coated lenses
    • 119 mm frontal lens for greater performance
  • Light Source:
    • Rated life (L70): up to 40,000 hours
    • Flicker-free source management suitable for TV applications and all video-recorded events
  • Movement:
    • Extremely accurate positioning
    • Moving-head operated with either 8- or 16-bit resolution
    • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
    • Pan and tilt with automatic repositioning
    • Moving-head range: 540° (pan), 270° (tilt)
  • Colours:
    • Sophisticated colour mix system providing CMY colour mixing
    • Variable CTO colour temperature correction
    • Fixed colour wheel with seven complementary colours
  • Gobos:
    • Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
    • Adjustable-speed rotating gobo in both directions
    • Gobo diameter: 25.0 mm
    • Image diameter: 20.0 mm
    • Gobo thickness: 1.1 mm
  • Framing System:
    • 4 individually positionable shutter blades
    • Rotation of the framing system module: +/- 45°
  • Dimmer / Strobe:
    • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
    • White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
  • Hardware Features:
    • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
    • XLR 5-pin male and female connectors for DMX connection
    • powerCON TRUE1 male and female connectors for power connection
  • Control:
    • DMX 512 protocol, through DMX cable or a wireless system
    • DMX-RDM compatible
    • Choice of 3 DMX modes (from 34 to 56 DMX channels)
  • Power Supply:
    • Electronic supply with active PFC
    • 100 to 240 Volts – 50/60 Hz
    • Power: 550 W maximum
  • Housing:
    • Moving-head skeleton made of aluminium and steel metal plates
    • Base in die-cast aluminium
    • Aluminium and copper heatsinks
    • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
    • Two-side handles for transportation
    • Four heavy-duty feet for better stability
    • IP20 protection rating
    • Exterior finish: black (Carbon)
Ayrton Diablo2022-01-12T11:38:19-07:00

Aryton MagicBlade-R

magicBlade

MAGICBLADE™R is a new design that offers continuous double rotation on PAN/TILT axes. Its unique feature is the layout of its seven RGBW LED sources in-line, paired with the highly intensive angle of the optics, which allow the creation of light curtains with genuine overall consistency. On stage, MAGICBLADE™R’s very high centre beam intensity enables excellent visual perception of the beams in an environment saturated with light – vital in the creation of virtual décor.
AYRTON™ has opted for a compact design for MAGICBLADE™R, with the primary objective of reducing the visual footprint of its luminaires. This allows MAGICBLADE™R to be installed in many unique positions and, coupled with the individual control of the 7 RGBW LED sources, enables the creation of a multitude of new effects.

Aryton MagicBlade-R2021-10-11T11:27:13-07:00
