LED

Ideal digital substitute of the analog par can
World’s #1 truss toner
75% to 82% energy saving compared to traditional technology at the same brightness
Cosmetic design for hi-end installations, only 3 kg (7 lbs)
Thick aluminum, long lasting light source in long lasting body
Variable light projection angles via quick lens change (standard: 12°; optional: 30°,13°x40°, 50°, 110°)
No fan, no maintenance, no noise
ETL approved
Internal/external gel frame (standard size for lighting industry)
Auto-sensing power 90-250 V
Smart build “Quick Stand” tucked into yoke

ColorBlaze is a robust, high-performance linear LED fixture for washing large areas with far reaching, rich, saturated colors. With a rugged, extruded aluminum housing, ColorBlaze is designed to withstand the rigors of the touring and rental market. ColorBlaze is an easy-to-use yet powerful solution for theaters, TV studios, concerts, events, casinos, and exhibits.

• ColorBlaze 72 (6 ft, 1.8 m) and ColorBlaze 48 (4 ft, 1.2 m) are each controllable in 6 in (152 mm) segments to support intricate, color-changing effects. Each segment outputs over 300 lumens
• Auto-switching power supply accepts power input of 110 – 240 VAC, eliminating the need for additional equipment and enabling consistent use around the world.
• Onboard push-button addressing offers easy configuration without external addressing tools
• Fixtures can be connected in series of up to 1,000 ft (300 m) using any combination of RJ45, Ethercon, or XLR-5 data cables.
• Mounting brackets and locking knobs enable 180° rotation, adjustment, and locking without special tools. Optional T-handle mounting bracket, accessory holders, spread lenses, and other custom accessories are also available.
• Onboard cooling fan and thermal sensor prevent overheating. A full range of replacement parts is available to keep ColorBlaze fixtures in service for the long haul.

CHORUS LINE 8™ is a 8 pixel bar wash luminaire featuring 40W 4-in-1 RGBW LEDs, motorized 4° to 40° zoom and 220° tilt movement, full pixel control, 2,700K – 7,000K adjustable linear color temperature, 64 color presets and 14 unique color macros, electronic strobe and 16-bit variable dimming curve modes, adjustable LED refresh rate frequency and gamma brightness for flicker free operation for TV and FILM, DMX, RDM, Kling-NET, and Art-NET protocol support, DMX, RJ45 ethernet, and Locking Power Cable in/out connections, 4 button LCD control panel display, dual quick-lock omega bracket rigging, and a multi-voltage universal auto switching power supply (100-240v).

CHORUS LINE 16™ is a 16 pixel bar wash luminaire featuring 40W 4-in-1 RGBW LEDs, motorized 4° to 40° zoom and 220° tilt movement, full pixel control, 2,700K – 7,000K adjustable linear color temperature, 64 color presets and 14 unique color macros, electronic strobe and 16-bit variable dimming curve modes, adjustable LED refresh rate frequency and gamma brightness for flicker free operation for TV and FILM, DMX, RDM, Kling-NET, and Art-NET protocol support, DMX, RJ45 ethernet, and Locking Power Cable in/out connections, 4 button LCD control panel display, dual quick-lock omega bracket rigging, and a multi-voltage universal auto switching power supply (100-240v).

The new COLOUR CHORUS™ series is available in 1 (0.3m), 2 (0.6m), 4 (1.2m), and 6 foot (1.8m) fixture lengths, featuring long life individual 3W (Red, Green, Blue, Amber) LEDs, 100,000 hour average LED life, individual hue, saturation, and intensity control, LED group control, variable dimming curve modes, strobe and chase effects, ArtNet™, KlingNet™and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

The CUEPIX 16IP™ is a versatile IP65 outdoor rated effect panel luminaire that features a 4×4 array of 16 30W 4-in-1 RGBA COB LEDs, 62° beam and 87° field angles, full pixel control and 5 pixel flip modes, RGB + Dynamic Amber modes, 16-bit dimming, variable dimming curve modes, high speed electronic shutter and strobe, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, no fans for noise-sensitive applications, DMX, RDM (Remote Device Management), Kling-NET, and Art-NET protocol support, IP65 rated locking 5pin XLR DMX, RJ45 Ethernet, and IP65 Locking Power Cable in/out connections, full color 180° reversible LCD control panel, and a multi-voltage universal auto switching power supply (100-240v). Versatile rigging options include 90° adjustable and fixed yoke brackets with 3-position mounting holes, and integrated alignment pins and interlocks for multiple panel matrix designs. Optional ¼ turn omega brackets available.

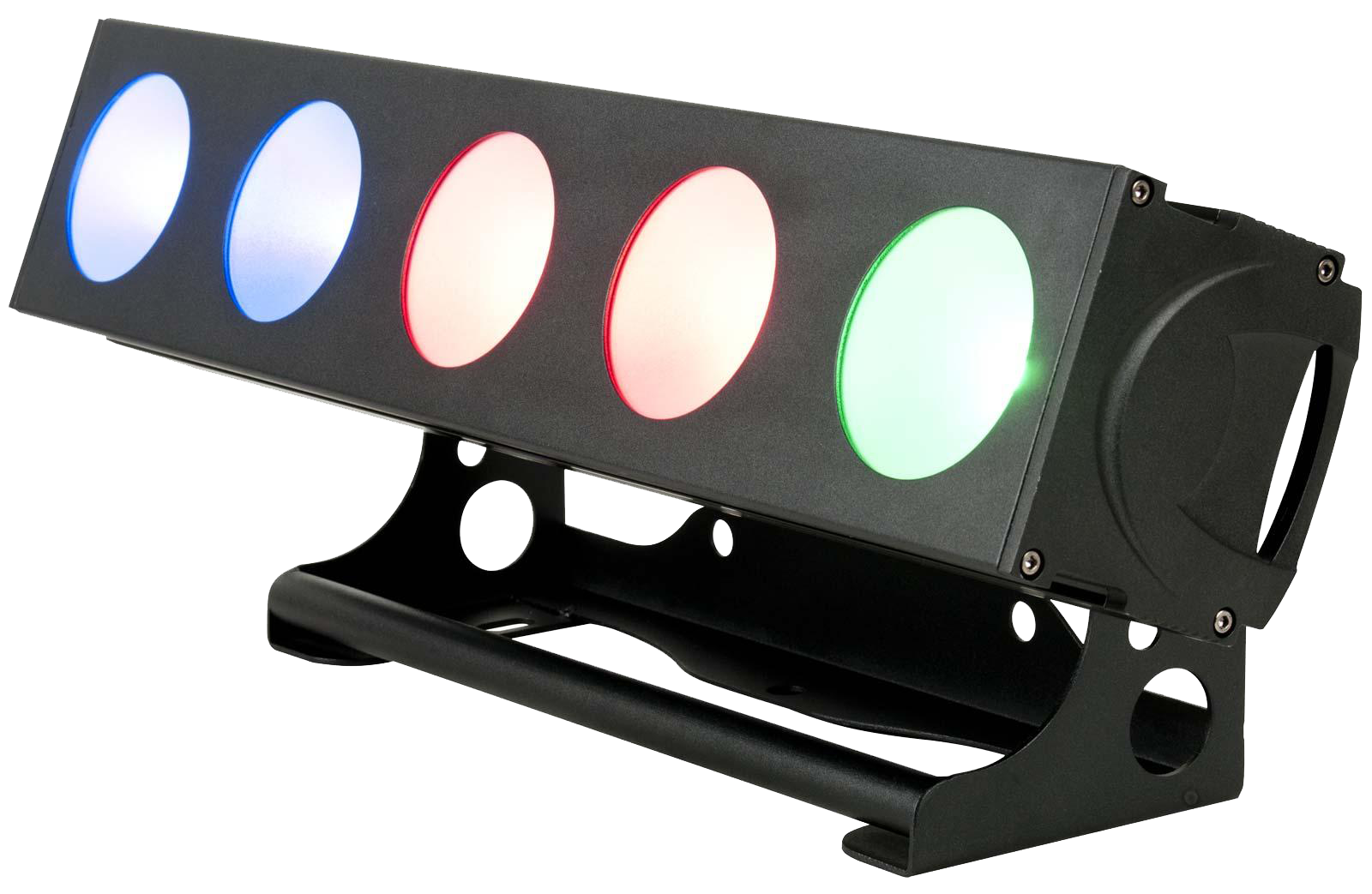

The new CUEPIX Strip TRI™ is a bar luminaire with (5) individual 3-in-1 30W RGB COB LEDs producing a 60° beam angle. Features include individual pixel control, strobe and zone chase effects, selectable dimming curves, DMX and RDM (Remote Device Management) support, 3/5pin XLR and powerCON in/out connections, (4) button LCD menu display control, 150W max power consumption, an and a multi-voltage universal auto switching power supply (100-240v).
