Movers

The ACL 360 BAR™ is a versatile moving bar effect luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, which combined produce a laser-like homogenized 4° color-changing beam from each lens which combined produce a 31° beam angle. Features include fast and precise16-bit continuous full 360° pan and tilt rotation, full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 3/5pin XLR, powerCON, and RJ45 ethernet in/out connections, (6) button control full color 180° reversible menu display, 135W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

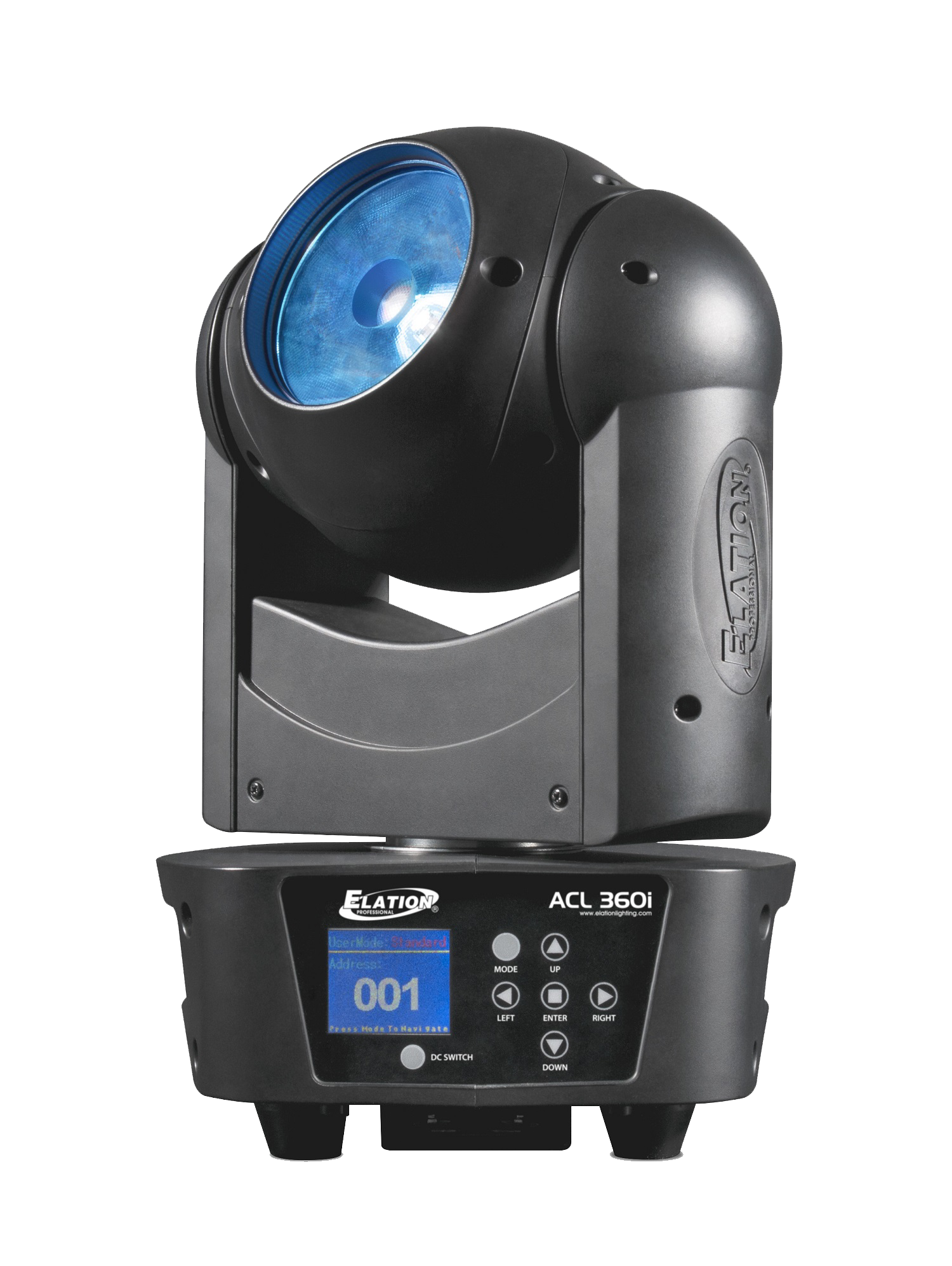

The new ACL 360i™ is an amazing single beam moving effect luminaire featuring a single 60W RGBW 4-in-1 LED and the new advanced collimator optic lens, which produces a laser-like homogenized 4° color-changing beam. Features 10 and 45 degree frost lens options (included), fast and precise16-bit continuous full 360° pan and tilt rotation, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 5pin XLR, powerCON, and RJ45 ethernet in/out connections, (6) button control full color 180° reversible menu display, 110W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

The DARTZ 360™ is a unique, compact, narrow beam luminaire featuring a new patent pending single source 50W RGB LED engine producing an impressive 3° aperture, amazing high output level, and smooth color-mixed effects that can be used in a variety of applications requiring no minimum safe project distance as with typical discharge lamp beam fixtures, fast and precise 16-bit continuous 360° pan and tilt rotation, 14 static-stamped metal gobos, 6-facet linear and 8-facet independent rotating prisms, 0-100% linear frost filter for wash effects, high speed electronic shutter and strobe, electronic dimming and variable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX, RDM (Remote Device Management), Kling-Net, Art-NET, and sACN protocol support, Elation’s E-FLY™ internal wireless DMX transceiver, 5pin XLR, RJ45 ethernet, and Locking Power Cable in/out connections, full color 180° reversible menu display with multi-button control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

The E SPOT LED II™ features a 60W 6,500K, Cool White Solid State LED engine, with greater output and 1/2 the power of a 150W discharge fixture, 16-bit pan and tilt motors, motorized focus, electronic strobe, 0-100% dimming, rotating 3 facet, 5 facet, and infinity prisms, color wheel with (8) dichroic colors plus white, gobo wheel with (7) rotating, interchangeable gobos, flicker free operation for TV and FILM, 3 and 5pin DMX in/out connections, (4) button touch control panel, 180W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).

FEATURES
Greater Output and 1/2 the Power of 150W Discharge
16 bit Pan and Tilt Motors
Motorized Focus
Flicker Free Operation for TV and FILM

SOURCE
60W 6,500K Cool White Solid State LED Engine
60,000 Hour Average Life

PHOTOMETRIC DATA
2,636 LUX 245 FC @5M 15°

EFFECTS
3 Facet, 5 Facet, and Infinity Prisms and Macros
Variable Strobe Settings
Electronic Dimming: 0% – 100%

COLOR
8 Dichroic Colors + White

GOBOS
7 Interchangeable / Rotating / Indexing Glass Gobos
Size: OD 27mm / ID 22mm

CONTROL / CONNECTIONS
(2) DMX Channel Modes (12/14)
3pin & 5pin DMX In/Out
4 Button Control Panel
LCD Menu Display
Edison Power Cable

SIZE / WEIGHT
Length: 11.9” (301mm)
Width: 8.0” (204mm)
Vertical Height: 16.0” (407mm)
Weight: 25.0 lbs. (11.3kg)

ELECTRICAL / THERMAL
AC 100-240V – 50/60Hz
180W Max Power Consumption

APPROVALS / RATINGS
CE | cETLus | IP20 Rated

The PROTEUS MAXIMUS™ an extremely bright IP65 rated LED Profile fixture offering outstanding projection, beam and wash qualities in any environment.

Providing up to 50.000 lumens from its custom designed 950W 6,500K LED engine the Proteus Maximus is the ideal fixture for any outdoor application requiring superior output, bright and powerful beams, quiet operation as well as stunningly precise gobos and colors. Proteus Maximus provides the designer a comprehensive FX package with 6 rotating and 7 fixed glass gobos, full animation wheel, dual prisms, dual frost and a high-speed Iris. Its indexable framing system provides full blackout shutter cuts for precise beam shape control.

With a fast zoom range from 5.5° to 55° and an impressive 180mm front lens the Proteus Maximus has the power to cut through at great distances in any outdoor concert, special events and with its fully dust and water proof design it is an ideal fixture for theme parks and cruise ships.

The Rayzor Q7 is the smallest, fastest and most powerful moving head LED wash / beam in it’s class. Featuring Quad Color LED’s and High Output Optical technology, Rayzor Q7 produces a Rayzor sharp beam with a 7 degree beam angle lens system, has Rayzor fast movement with new high speed 3-phase motor technology. Utilizing 7 x 15 Watt Osram Quad Color RGBW LED’s which can also be controlled and chased in 4 independent zones for dynamic visual effects. Optional accessories for the Rayzor Q7 include a snoot lens cover and diffusion filter holder. The Rayzor Q7 features a full color LCD touch menu display, powercon in/out linking, multi-voltage power supply from 100-240v and 5pin DMX as standard. The Rayzor Q7 is CE approved and cETLus approval is pending.

Specifications:
• 7 x 15W Quad Color RGBW LEDs
• LED Type: OSRAM LERTDUW S2W
• 100,000 hour long life LED
• 7° beam angle
• 13° field angle
• 1,743 Lux @ 7.5M
• Strobe 1-18fps
• Dimming: 0-100%
• 4 zone chase effects
• 8 macros
• 15/17/29 DMX channels
• 5pin in/out DMX connectors
• Power con in/out
• Full color LCD display
• 540 / 630 x 265 Pan / Tilt
• 100-240v / 50-60hz power input
• ST 250V T3.15A fuse
• 45° max ambient temp
• 140W max power
• Flicker Free
• RDMX
• Color LED touch display
• Black Case Color
• Single Omega bracket mounting
• Electrical Approvals: CE and cETLus APPROVED
• Optional accessories: Snoot / Diffusion Filter holder
• Weight: 11lbs
• Dimensions: 9.25″ x 5.5″ x 12.5″

The ZW19™ is an LED moving head beam/wash effect luminaire featuring (19) 10W RGBW 4-in-1 LEDs, motorized 10° to 60° zoom, 64 color macros, fast and precise 540° pan and 220° tilt rotation, 16-bit fine resolution adjustable movement, strobe, and selectable dimming curve effects, 3/5pin XLR and powerCON in/out connections, (4) button control 180° reversible menu display, 245W max power consumption, and a multi-voltage universal auto switching power supply (100-230v).

The impression X4 Bar 20 is a high performance batten that incorporate 15 Watt RGBW LEDs packed tightly to give a full line of light. The X4 Bar 20 uses 20 LEDs. High quality optics ensure a smooth, homogenized output across the batten through a broad pallet of pastel and saturated colors, complimented by GLP’s exceptional dimming which ensures that there is no color shift, just smooth even fades. DMX control offers full pixel mapping capabilities, whilst both units feature a 7:1 zoom ranging from 7 to 50 degrees, giving effects from a narrow angle light curtain to a wide angle washlight.

The X4 Bar also features a motorized tilt, for fast refocussing or to be used to add more dynamics to the output beam. Multiple X4 Bar units can be aligned, and maintain consistent pixel spacing between adjacent units.
