The new Stagebar 54 is a compact, powerful LED luminaire with a comprehensive color range, all-in-one simplicity and a tough temperament for the touring market. It functions as a pixel bar for displaying imagery and video or as a wash luminaire for floodlighting surfaces and stages.
The VDO Sceptron 10 is a linear outdoor-rated LED video fixture for the rental market with 10 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks. The VDO Sceptron 10 is driven by the Martin P3 System Controller family for easy configuration, mapping and setup, and is also backwards compatible with DMX for smaller setups. The integrated power and data cabling allows for long daisy-chains with many fixtures per cable-run, while the power supply can be located backstage (up to 50 m away) for a clean setup avoiding messy cabling and several driver boxes.
The ATMe single high output haze generator is the evolution of the world-famous ATMOSPHEREAPS, the industry’s standard for almost two decades.
Features:
Lowest Fluid Consumption on the Market
Longest Hanging Time
Variable Haze Output
Automatic Purging System
Numerous Control Options
Extremely Quiet Operation
Specifications:
MDG-Me2 is the more powerful twin of the Me1, housed in the same size chassis but with twice the power (and two nozzles!).
With its four nozzles, the maximum fog output is 400 m3 (14,126 ft3) per minute.
0-100% fog output control from your DMX/RDM device, or direct local control.
At maximum output (2.76 bar / 40 psi) Me4 uses only 4 L (1.06 US gallon) of fluid per hour.
At all output levels Me4 produces a high-quality, consistent fog as long as there is fluid and gas.
4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
This system purges the heating modules after the first heating cycle and after every emission of fog preventing residual build up and clogging.
TheONE’s revolutionary technology means this fully digital atmospheric generator creates fog or haze effects from a single source. Its construction and features make theONE, perfect for rental and international touring.
Features:
Specifications: Fog Mode
Specifications: Haze Mode
Operation:
Generator:
Cradle:

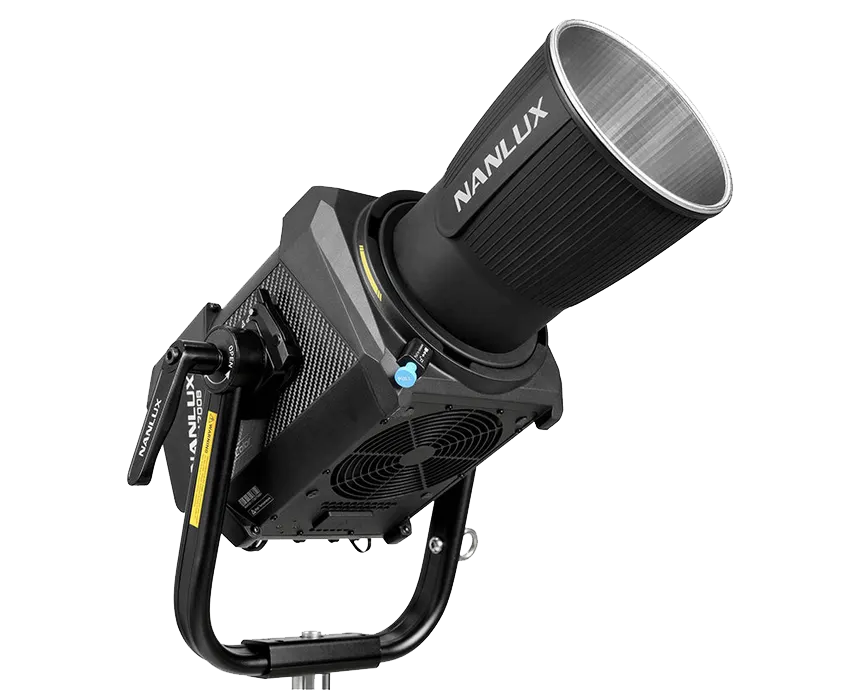

Adopting a popular, easy-to-use form factor, the Evoke 1200B LED Bi-Color Spot Light from Nanlux has an expansive variable color range from 2700 to 6500K with high CRI and TLCI ratings or 96 and 97 to leave no doubt that color will be rendered accurately down to the subtlest hue. The 1200B is dimmable from 0 to 100% in 0.1% increments and has linear, S-curve, exponent, and logarithm dimming curves to guarantee color accuracy regardless of your chosen light intensity.
This 19.8 x 14.56 x 8.26″ fixture is a powerful light. It outputs 61,030 lux at 9.8′ and Nanlux offers a generous bounty of methods to control it. The Evoke 1200B supports onboard DMX/RDM and optional wired DMX connectivity. Wireless control options are also available with the provided NANLINK controller, via LumenRadio TIVO II, CRMX, Bluetooth, or 2.4 GHz. The light’s intelligent design features a 3-speed fan for long LED life and you can turn it off when shooting in sound-sensitive environments.
Built-in practical effects include CCT loop, INT loop, CCT flash, CCT pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, fireworks, explosion, and welding. The 1200B ships with a 45° reflector but 26 and 60° reflectors are also separately available. The Evoke 1200B’s yoke has an extra 15° of tilt which you’ll appreciate when using one of several optional softboxes. There is also a Fresnel lens and projection adapter available for separate purchase. The Evoke 1200B is ready for worldwide use via its 100-240 VAC power supply.

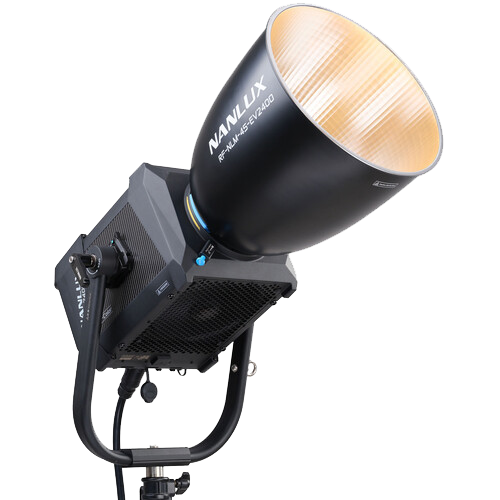

Whether in the studio or on location, the Nanlux Evoke 2400B Bi-Color LED Monolight is a versatile and robust lighting solution, bringing excellent color rendering and flexibility for professionals in photography and filmmaking. It offers a wide color temperature range from 2700 to 6500K with a high CRI of 96 and TLCI of 97, ensuring accurate color rendering, while the green and magenta adjustments ensure perfect color tuning. The light’s brightness can be finely adjusted from 0 to 100% with various dimming curves like linear and S-curve for consistent color output. Compact at 16.8 x 12.5 x 10.4″, this monolight delivers a strong output of 41,910 lux at 9.8′. It features flexible control options, including DMX/RDM, wired DMX, and wireless controls through NANLINK, LumenRadio, or Bluetooth. The Evoke 2400B is designed for both studio and location use, with an IP55 rating for weather resistance, and includes a 45° reflector, an adjustable yoke, a 24.6′ DC cable, and a super clamp. It’s ready for global use with a 100-240 VAC power supply, and it offers a Dual Draw Selector for 75% power at 15A or full power at 20A.
The NX1 is the essential lighting controller in the innovative and powerful ONYX platform. Fully featured and unrestricted if offers the complete ONYX experience without compromises in an ultra-compact package.
Utilizing the full ONYX Operating System the NX1 includes a high-brightness 10.1″ HD multi-touch screen; 4 assignable parameter encoders; 10 full motorized playbacks with four freely assignable buttons plus and extra playback and function key hybrid array. A dedicated Master Go section rounds out the efficient front panel design.Including the latest in industrial components the NX1 contains a powerful new Intel processor, high speed NVMe SSD drive and 8GB of DDR4 RAM, allowing fast boot times, instant operation and the ability to process 8 Universes right inside the console. With four DMX ports, a Gigabit network port for up to 8 Universes of Art-Net, sACN plus the ONYX X-Net protocol the NX 1 has ample connectivity and power for a wide variety of shows and applications. One additional touch monitor is supported for even more direct access at anytime.
The NX1 is further expandable with the dedicated NXK keypad and the NXP motorized playback wing. A simple magnetic alignment system allows attachment on either side of the NX1. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.
The NX2 is the ultimate compact yet powerful fully integrated lighting controller. As a member of the innovative ONYX platform from Obsidian Control Systems the NX2 is feature rich and never restricted inits capabilities. NX2 includes a high-brightness full HD multi-touch screen; 8 assignable parameter encoders;an assistive mini touch-screen; full keypad and command section; a dedicated grandmaster and 10 full playbacks with four freely assignable buttons.
Utilizing the latest in industrial components the NX2 contains a powerful new Intel Hexa-Core processor, high speed NVMe SSD drive and 16GB of DDR4 RAM. Fast boot times, instant operation and the ability to process 64 Universes right inside the console without the need for costly external processing networks result in unprecedented power in this form factor.
The NX2 is ergonomic with its compact footprint, full ONYX command and keypad section and the bright adjustable HD touch screen. It is always ready to run the largest shows and events at a moments notice.
With four DMX ports, Timecode, Midi and dual Gigabit ports for up to 64 Universes of Art-Net, sACN plus the ONYX X-Net protocol the NX 2 has all the connectivity and power the ever-increasing sizes of shows demand. Two additional 4K touch monitors are supported for even more direct access at anytime.
