Movers

The ACME GEMINI fixture is a dual-functional, bar and strobe fixture with no limits. Whether your needs are a pan and tilt zoomable color light bar or bright strobe fixture the GEMINI provides both in a compact, form-factor luminaire.

The fixture’s front five cells are each equipped with a powerful 60-Watt RGBW LED. The rear of the head, the strobe section, has 36, cool white LEDs for strobes up to 41,000 lumens. The unit’s zoom range for the color section goes from a narrow 2.8 ^o to a wide 46 ^o for even fields of light and deep, homogeneous colors. The strobe section offers 18 individually controllable zones for unparalleled effects.

The GEMINI fixture offers seven different DMX control modes from basic operation to sophisticated individual pixel-control effects. For users wanting simpler control, the unit has preprogrammed colors and macros with popular colors and eye-catching effects saving you programming time.

In addition to its powerful effects and strobes, the unit has infinite pan and tilt operation making it like no other light bar or strobe on the market. The unit is lightweight and compact and is perfect for any application from touring to fixed installations and everything in between.

The GEMINI LED fixture – because two is better than one.

Features

• Light Source:
  • Beam: 5 x 60W RGBW LED
  • Strobe: 36 x 18W CW LED
• With zoom and strobe functions
• Beam mode: 5 LEDs with pixel control
• Strobe mode: 18 zones individually controlled
• Motorized linear zoom system
• Outstanding color effects
• Outstanding strobe effect with variable speed
• 0~100% smooth dimming
• Supplied with two omega brackets (optional, with two foldable fixed clamps)
• Flicker free operation

The ACME TORNADO with an innovative design and appearance designed to elevate your visual experiences to new heights. Boasting a powerful 5 x 120W RGBL LED as its main light source, complemented by a ring of 120 x 0.5W RGB LEDs encircling the fixture, it promises an unparalleled fusion of brilliance and versatility.

The fixture is equipped with five individual light heads featuring precise pan and tilt movements. Each head can be controlled independently, offering limitless possibilities for artistic exploration and creation.

Experience the fast and smooth linear zoom from 3° to 30°, with a field angle of 4° to 35°. Witness the magic as it produces sharp, saturated beam effects, ensuring your visuals shine with unparalleled vibrancy and brightness.

With an all-weather IP66 rating, TORNADO is designed to withstand the elements, ensuring unwavering performance in any environment, whether indoors or outdoors.

Ayrton’s latest innovation, Diablo, is a versatile, feature-rich 300 W profile luminaire based on the ultra-compact Mistral format.

The company has taken on the ambitious challenge of making Diablo the smallest, lightest and most efficient luminaire of its category. With a record output of 19,000 lumens and a total weight of 21.8 kg, DIABLO is a powerhouse of technology that will tempt the most demanding lighting designers. To achieve its objective, Ayrton has miniaturised the framing system while maximizing the performance level. Diablo is available in two versions: S and TC.

Diablo-S, specially designed for stage applications, is equipped with a monochromatic LED light source that can generate extremely high output and metallic white light calibrated at 6500 K.

DIABLO-TC is geared for applications that require perfect colour rendition, using a monochromatic light source with a native colour rendering index greater than 90 and high TM30 readings, at a colour temperature of 5700 K.

• Specifications:
• Optics:
  • 13-element 8:1 zoom high-resolution optic system
  • Beam aperture: 6.7° to 53°
  • Fast motorised linear zoom
  • Tempered anti-reflective coated lenses
  • 119 mm frontal lens for greater performance
• Light Source:
  • Rated life (L70): up to 40,000 hours
  • Flicker-free source management suitable for TV applications and all video-recorded events
• Movement:
  • Extremely accurate positioning
  • Moving-head operated with either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
  • Pan and tilt with automatic repositioning
  • Moving-head range: 540° (pan), 270° (tilt)
• Colours:
  • Sophisticated colour mix system providing CMY colour mixing
  • Variable CTO colour temperature correction
  • Fixed colour wheel with seven complementary colours
• Gobos:
  • Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
  • Adjustable-speed rotating gobo in both directions
  • Gobo diameter: 25.0 mm
  • Image diameter: 20.0 mm
  • Gobo thickness: 1.1 mm
• Framing System:
  • 4 individually positionable shutter blades
  • Rotation of the framing system module: +/- 45°
• Dimmer / Strobe:
  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
• Hardware Features:
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • XLR 5-pin male and female connectors for DMX connection
  • powerCON TRUE1 male and female connectors for power connection
• Control:
  • DMX 512 protocol, through DMX cable or a wireless system
  • DMX-RDM compatible
  • Choice of 3 DMX modes (from 34 to 56 DMX channels)
• Power Supply:
  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60 Hz
  • Power: 550 W maximum
• Housing:
  • Moving-head skeleton made of aluminium and steel metal plates
  • Base in die-cast aluminium
  • Aluminium and copper heatsinks
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Two-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)

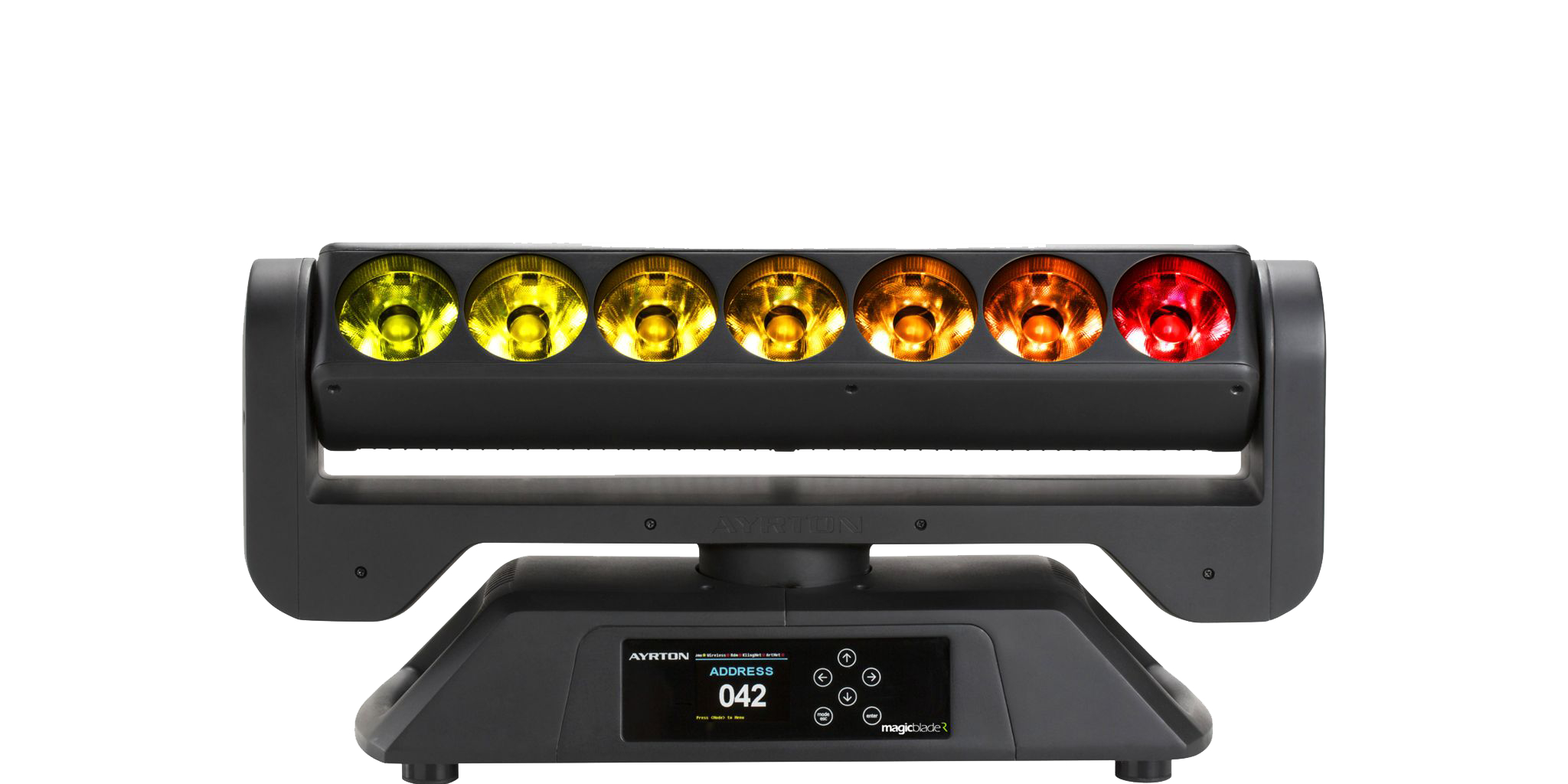

MAGICBLADE™R is a new design that offers continuous double rotation on PAN/TILT axes. Its unique feature is the layout of its seven RGBW LED sources in-line, paired with the highly intensive angle of the optics, which allow the creation of light curtains with genuine overall consistency. On stage, MAGICBLADE™R’s very high centre beam intensity enables excellent visual perception of the beams in an environment saturated with light – vital in the creation of virtual décor.
AYRTON™ has opted for a compact design for MAGICBLADE™R, with the primary objective of reducing the visual footprint of its luminaires. This allows MAGICBLADE™R to be installed in many unique positions and, coupled with the individual control of the 7 RGBW LED sources, enables the creation of a multitude of new effects.

First-born in the Creative Solutions family, MAGICPANEL-602 is a modular LED luminaire which delivers a broad range of diverse visual effects. Equipped with continuous unlimited PAN & TILT rotation, it is able to display numbers, letters, graphic effects or images, but it is also a fabulous lighting luminaire which can be used as a dazzling projector. This luminaire integrates the new AYRTON technology that allows the individual control of each LED source in expanded Full Colour mode. The display is made up of thirty-six 15 Watt RGBW LED emitters in a 6 x 6 array, fitted with high-output 7.5° 45 mm optics. These offer an overall luminous flux in excess of 14,000 lumen from a maximum power consumption of 600 Watt.

The square shape of the panel and perfect alignment of the optics combined with the continuous double rotation movements permit the creation of completely new three-dimensional effects. MAGICPANEL-602 can be used in groups to create rotating screens on the two axes while the robust construction of the luminaire allows its permanent use in vertical position.

Heat management is handled by a sophisticated and particularly quiet cooling system.

MAGICPANEL-602, which is particularly intended for the creation of special effects, benefits from extensive line connectivity. It can be controlled by DMX-RDM, Art-Net or through the LumenRadio DMX-RDM wireless connection.

RIVALE PROFILE is the first ultra-equipped luminaire in AYRTON’s brand new “ULTIMATE“ series, all models being perfectly homothetic and sharing common features, delivering previously unimaginable weight to output ratios.

Developed for mixed use indoors and outdoors, and in all conditions, RIVALE PROFILE, with its unique visual signature, is unparalleled on the market. Weight determines performance, and RIVALE PROFILE weighs only 30.8 kg. It is capable of outstanding performance unprecedented for a product in this category. To allow you more creativity and freedom in your lighting design, RIVALE PROFILE has been provided with continuous rotation of the pan and tilt movement. RIVALE PROFILE is fitted with a brand new high-efficiency 450-watt sealed mono-block LED module calibrated at 6500 K that offers a luminous flux of 30,000 lumens with optimal positioning on a black body to obtain perfect light neutrality. The proprietary optical system has 13 lenses, delivering a 13-to-1 zoom ratio and zoom range of 4 to 52°.  Equipped with a 160 mm frontal lens, RIVALE PROFILE can produce an ultra-intensive beam of 4°, close to that of AYRTON’S famous “LT“ versions.

COLORado PXL Curve 12 is a fully pixel-mappable motorized IP65-rated RGBW LED batten with individual control of zoom, tilt and color across twelve independent heads. Basic and advanced operating modes and an extensive library of pre-built effects that includes virtual gobos, movement macros, and foreground/background color control make creating complex and volumetric looks easy. Seamless edge-to-edge mounting maintains pixel pitch between fixtures helping to make runway effects consistent. COLORado PXL Curve 12 speaks DMX, sACN, Art-Net, Kling-Net and RDM.
