The Rayzor Q7 is the smallest, fastest and most powerful moving head LED wash / beam in it’s class. Featuring Quad Color LED’s and High Output Optical technology, Rayzor Q7 produces a Rayzor sharp beam with a 7 degree beam angle lens system, has Rayzor fast movement with new high speed 3-phase motor technology. Utilizing 7 x 15 Watt Osram Quad Color RGBW LED’s which can also be controlled and chased in 4 independent zones for dynamic visual effects. Optional accessories for the Rayzor Q7 include a snoot lens cover and diffusion filter holder. The Rayzor Q7 features a full color LCD touch menu display, powercon in/out linking, multi-voltage power supply from 100-240v and 5pin DMX as standard. The Rayzor Q7 is CE approved and cETLus approval is pending.

Specifications:
• 7 x 15W Quad Color RGBW LEDs
• LED Type: OSRAM LERTDUW S2W
• 100,000 hour long life LED
• 7° beam angle
• 13° field angle
• 1,743 Lux @ 7.5M
• Strobe 1-18fps
• Dimming: 0-100%
• 4 zone chase effects
• 8 macros
• 15/17/29 DMX channels
• 5pin in/out DMX connectors
• Power con in/out
• Full color LCD display
• 540 / 630 x 265 Pan / Tilt
• 100-240v / 50-60hz power input
• ST 250V T3.15A fuse
• 45° max ambient temp
• 140W max power
• Flicker Free
• RDMX
• Color LED touch display
• Black Case Color
• Single Omega bracket mounting
• Electrical Approvals: CE and cETLus APPROVED
• Optional accessories: Snoot / Diffusion Filter holder
• Weight: 11lbs
• Dimensions: 9.25″ x 5.5″ x 12.5″

The ZW19™ is an LED moving head beam/wash effect luminaire featuring (19) 10W RGBW 4-in-1 LEDs, motorized 10° to 60° zoom, 64 color macros, fast and precise 540° pan and 220° tilt rotation, 16-bit fine resolution adjustable movement, strobe, and selectable dimming curve effects, 3/5pin XLR and powerCON in/out connections, (4) button control 180° reversible menu display, 245W max power consumption, and a multi-voltage universal auto switching power supply (100-230v).

The impression X4 Bar 20 is a high performance batten that incorporate 15 Watt RGBW LEDs packed tightly to give a full line of light. The X4 Bar 20 uses 20 LEDs. High quality optics ensure a smooth, homogenized output across the batten through a broad pallet of pastel and saturated colors, complimented by GLP’s exceptional dimming which ensures that there is no color shift, just smooth even fades. DMX control offers full pixel mapping capabilities, whilst both units feature a 7:1 zoom ranging from 7 to 50 degrees, giving effects from a narrow angle light curtain to a wide angle washlight.

The X4 Bar also features a motorized tilt, for fast refocussing or to be used to add more dynamics to the output beam. Multiple X4 Bar units can be aligned, and maintain consistent pixel spacing between adjacent units.

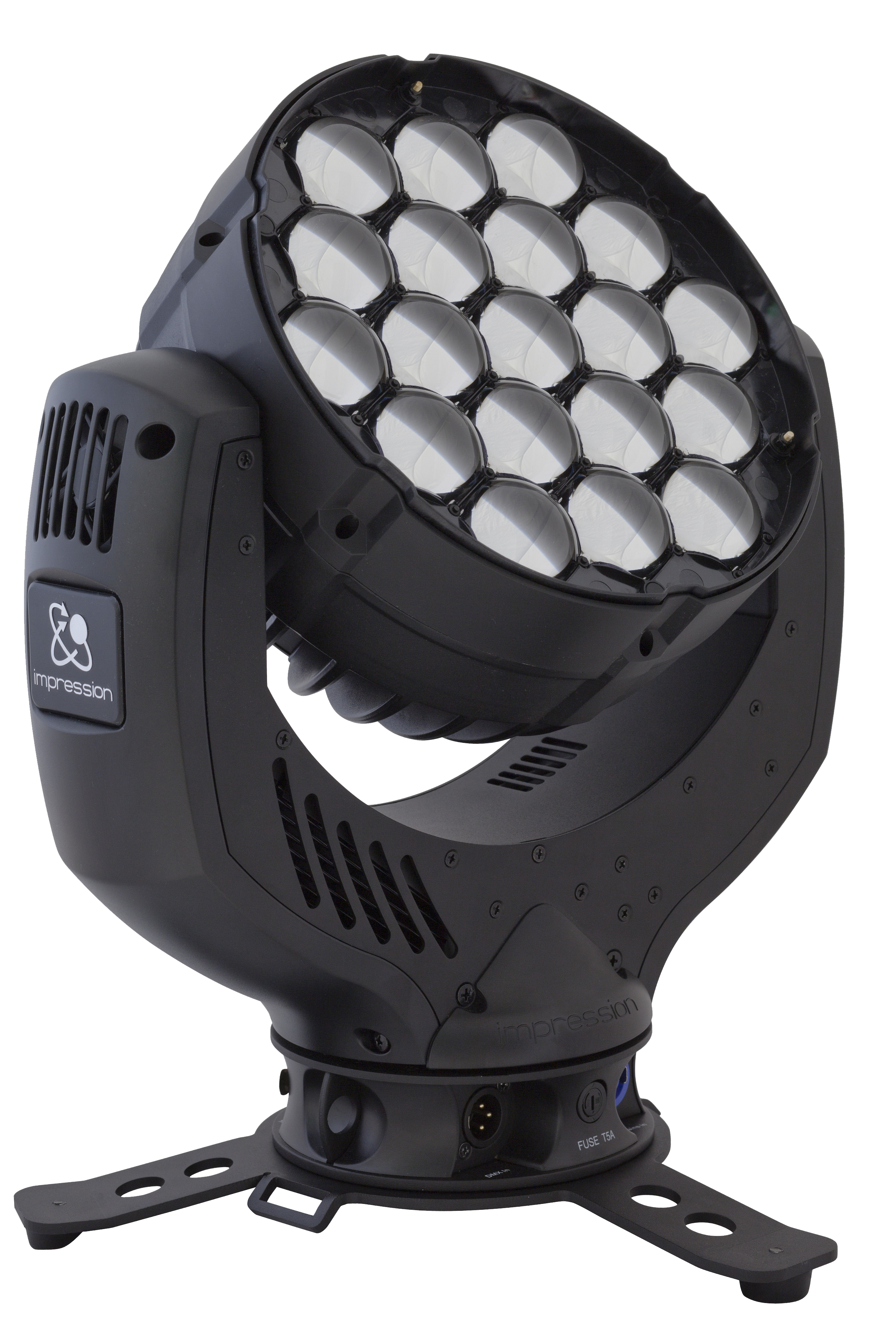

The impression X4 features 19 RGBW high output LED’s. In its slimline body, with no base unit, the impression X4 houses a 7 to 50 degree zoom range, full color mixing including CTC and customizable pixel patterns across its front face.

The impression X4S features 7 RGBW high power LEDs (each 15 watts) and a 7 ° – 50 ° zoom optic. The optics, originally from the impression X4 has the same characteristics as a well-defined hard beam in the lower zoom range and in the middle and upper range zoom absolutely homogeneous and soft. All this without disturbing scattered light.

Emphasis was placed on the X4S for a compact body and a quick pan / tilt movement.

Distinctive in design, SHOWGUN 2.5 is, in essence, a very large and powerful automated light that can project images, change and mix dichroic colors, and switch from hard-edge to soft-edge all within a compact system.  This new version of SHOWGUN has 30 percent more photonic output than its predecessor.

SHOWGUN provides entertainment lighting design possibilities in three dimensions: first, in the air with high-energy focused or soft edge beams; second, with images projected on the stage surface; and third, at the SHOWGUN fixture itself by using an innovative LED Tracking System.

A new patent pending optical design is at the forefront of the “radical rethinking.” This optical design incorporates a proprietary, optically accurate polymer microfresnel lens allowing SHOWGUN to produce a true focused hard-edge or a brilliant soft-edge combination, without the need for two separate fixture types. The true focused hard-edge allows SHOWGUN to project HES LithoPattern images, while the soft-edge abilities exceed industry standards. Soft edge/hard edge “enabling” for SHOWGUN is easily accomplished from any lighting console.

SHOWGUN’s main output uses a 2500 watt short arc metal halide lamp designed as a joint venture between Philips and High End Systems. The MSR 2500/2 lamp uses a novel fast fit socket design that allows for a more compact reflector combination. Combining the high-performance lamp, advanced reflector and revolutionary optical design, SHOWGUN must be seen to be fully appreciated.

SHOWGUN’s LED Tracking System forces a double take as a unique homogenously mixed RGB LED circular array that allows the user to either match the color of the main output beam, or to project a complementary color by mixing RGB values. The LED Tracking System alone produces more than 5000 lumens of output, and works in tandem with SHOWGUN’s other features to redefine the rules of lighting design.

SHOWGUN is at the vanguard of today’s lighting design revolution.

Features

• Proprietary Short Arc Lamp and optics produce 130,000 lumens of light
• Variable soft-edge
• fully rotating, indexable lithos
• Variable iris
• Variable strobe, Electronic strobe
• Light Burst lamp boosting
• Zoom range from 9°-18°
• Remote focus
• Full optical dimming and fade to black
• Innovative LED Tracking Ring produces over 5000 lumens of RGB color. Homogenously mixed RGB LED circular array eliminates the multiple colored RGB look when white or mixed colors are produced.
• Smooth CMY color mixing provides and infinite palette of color
• Four indexing Litho/Gobo rotators
• Black Light projection filter
• TriColor effect supports independent color flag control
• Tracking and Independent modes selectable via DMX
• Optical encoders automatically correct the head’s position if manually moved

Operation

• 420° pan and 216° tilt movement
• Auto-switching power supply
• Large dot matrix display allows for 2 lines of text
• 200v-240v
• 30 DMX channels
• DMX Connector: 5-pin XLR
• Compliances: ETL, CE

Construction

• Modular construction
• Fast service design for Reflector, Condenser and Output lens
• Electronic cooling system control
• Stunningly fast, smooth and quiet yoke movement using proprietary multi-phase technology
• Performance oriented exterior design prevents stray light scatter
• Pan and tilt locks for easy transportation.

Electrical Specifications/Light Source
Power Consumption: 16 Amps at 208 V, 13.75 Amps at 240V

Fixture Rated Power: 2500 W
Lamp: PHILIPS MSR 2500/2

Color Temperature: 7000K
Barco rated Lamp Life: 1250 hrs
CRI >80
CIE X=.320; Y=.330
